Double Brick / Block Solid Wall Lintels

We offer 4 types of lintel designed for supporting double masonry walls, but each type is available to suit a wide range of wall constructions. Click on the PDF links to download the detailed pages from our catalogue for these lintels .

> View the range overview and duty graphs
> Download the PDF Order form for Straight Lintels
> Click here for installation guides

REGARDING WALL THICKNESS: As for all our lintels, each designation (eg. 'DL6') is available in a range of widths to suit different thickness walls, but they all have the SAME load capacity. Simply suffix the lintel with your wall, eg: DL6-100/140. View the PDF files for details.

> Click here for more details about how to specify and why we do it this way.

SEE ALSO extra wide single wall boxes - they can also be used to support double masonry walls!

Placeholder Image

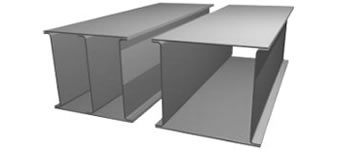

DL LINTELS
(Light & Standard Duty)

DL lintels provide a neat solution to supporting double brick or block openings, they are easy to course through and can be supplied without the plaster key on the underside if the soffit is to be visible through the opening.
RANGE APPLICATION

DL6

 Light Duty, short spans

DL9

 Light Duty, moderate spans

DL15

 Standard Duty, short spans

DL21

 Standard Duty, moderate spans

DL22

 Medium Duty, moderate spans


Placeholder Image
DC LINTELS
(Medium Duty)

For similar applications to the DL lintels, but can carry heavier loads and handle longer spans, thanks to the flange on top.
The flange courses in with standard brick or blockwork.
RANGE APPLICATION

DC15

 2 courses high, standard duty

DC23

 3 courses, medium duty

DC24

 3 courses, heavy duty

Placeholder Image
DB LINTELS
(Light-Heavy Duty)

Box lintels are strong and stable, resisting twisting, and so are typically easier to install than DL or DC lintels.
Plaster key can be provided on the inside as well to assist dry lining.
RANGE APPLICATION

DB7

 1 brick course high

DB15

 2 brick courses high
DB22 Heavy Duty, shorter spans
DB23 Heavy Duty, moderate spans
DB30 Heavy Duty, moderate spans


Placeholder Image

EB Lintels
(Medium Duty)

EB lintels are simple box lintels with extra-wide plaster key fitted. This enables them to support the roof in low eaves situations immediately above an opening, but with additional allowance for dry-lining over the cavity.


RANGE APPLICATION

EB7

 1 brick course high

EB14

 2 brick courses high
EB21 Standard Duty, moderate spans
EB22 Heavy Duty, moderate Spans
