Single Leaf Solid Wall Lintels

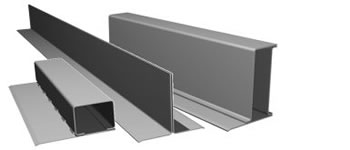

We offer a wide range of lintels suitable for supporting single brick/block thickness masonry, from light duty angles through to heavy duty box lintels. Click on the PDF links to download the detailed pages from our catalogue for these lintels ...

> View the range overview and duty graphs
> Download the Order form for Straight Lintels
> Click here for installation guides

REGARDING WALL THICKNESS:
As for all our lintels, each designation (eg. 'SL7') is available in a range of widths to suit different thickness walls, but they all have the SAME load capacity. Simply suffix the lintel with your wall, eg: SL7-100. View the PDF files for details.

> Click here for more details about how to specify and why we do it this way

SL LINTELS
(Light & Standard Duty)

Standard design cavity wall lintels, with fitted CFC-free polystyrene insulation and stainless steel plaster key on the underside. They are easy to install and suitable for short and moderate spans where the load ratios are not unusual.

RANGE	APPLICATION
SL7	Light Duty, short spans
SL11	Light Duty, moderate spans
SL15	Standard Duty, short spans
SL17	Standard Duty, moderate spans
SL19	Medium Duty, moderate spans
SL19	Heavy Duty, moderate or longer spans

SC LINTELS
(Light & Standard Duty)

For similar applications to the SL lintels, but can carry heavier loads and handle longer spans.
Care must be taken to prop the lintels correctly during construction, and restrain the wall above, unless loads are light.

RANGE	APPLICATION
SC9	1 course high, light duty
SC15	2 courses, standard duty
SC23	3 courses, standard duty
SC24	3 courses, medium duty

SLB LINTELS
(Shelf Angles)

These lintels bolt back to a frame or masonry behind, providing a simple masonry support solution.
If you need to cross a cavity as well, take a look at our dedicated range of outer leaf lintels, on the product contents link listing above left.

RANGE	APPLICATION
SLB11/2	Standard duty, 3.0kN/m
SLB11/3	Medium duty, 10.0 kN/m
SLB11/4	Heavy duty, 24.0 kN/m

SB2 - SB7 Lintels
(Light-Medium Duty)

A unique range of little lintels, far lighter than concrete (and hollow for routing of services) and far tougher than wood. They also carry more than our competitors 'W' shape lintels.
The SB7 is exactly the height of a brick!

RANGE	APPLICATION
SB2	Light duty, short spans
SB3	Light Duty, longer spans
SB5	Standard Duty, short spans
SB7	Standard Duty, moderate Spans

SB14 - SB29 Lintels
(Medium-Heavy Duty)

These standard box lintels are strong and easy to install. They can also be supplied with plaster key on the sides for dry lining.
Their simple construction can be stretched to almost any wall dimension you need!

RANGE	APPLICATION
SB14	2 courses high, standard duty
SB21	3 courses high, medium duty
SB22	3 courses high, heavy duty
SB29	4 courses, heavy duty, long spans
