Feature Brick Lintels

Feature brick is not a special type of lintel, but rather an option available on most of the standard types of lintel.

A feature brick lintel supports the soffit course of masonry from above or behind rather than underneath. This means you don't see the lintel at the soffit - it is completely hidden!

Apart from the aesthetic advantages, maintainance on the lintel soffit is also eliminated.

To specify a feature brick option for your lintel, specify the lintel as normal and then suffix 'FB' on the end. Two examples are given below.

EXAMPLE FEATURE BRICK CC24 WITH STEP

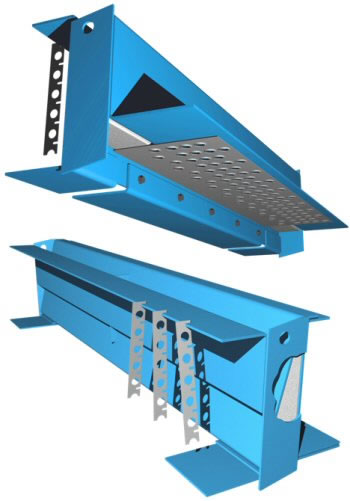

This example is a regular CC24 lintel, with a stepped outer and feature brick option added. The soffit bricks are installed on a temorary soffit support (shown attached in the top 3D image) which is later removed.

CC24-100/80/100 S50/FB
(Centre section as installed)


EXAMPLE FEATURE BRICK CA17 LINTEL

This example shows a regular CA17 lintel, with feature brick option added. The soffit bricks are installed on a temorary soffit support (shown attached in the top 3D image) which is later removed.

CA17-100/80/125 FB
(Centre section as installed)



Download our 2-page Feature Brick guide here pdf

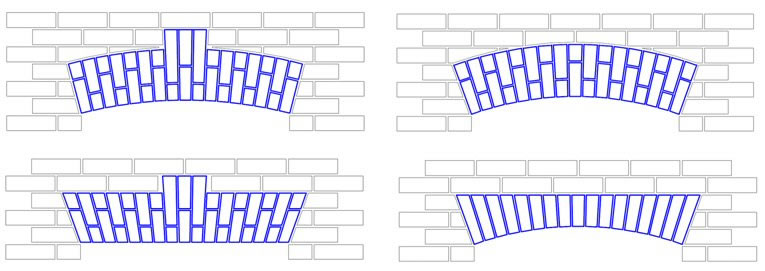

EXAMPLE ARCH LINTELS - ALSO POSSIBLE IN FEATURE BRICK


These traditional designs typically look far better in feature brick, particularly in areas where the soffit is in prominent view.

Note that Curved-on-Plan and Corner lintels can also be accomodated in feature brick if required.
